Scope Of Works
- Install the provided tablet brackets following the instructions below
Tool Kit Requirements:
- Screwdriver
- 60mm hole saw
- Allen Keys (Comes in Kit)
- Mounting Hardware (In Kit)
Points of Contact:
BWR Project Manager
Philip Laurent: +61 406 871 203
BWR
Email: ssd@bwr.services
Mobile: 0404 555 225
Optus Project Manager
Gloria Hanna: +61 415 053 921
Action Plan:
- Contact BWR Service Desk Engineer once en route and on-site.
- Select locations on the activation tables (2 x per table). Please send photos of locations to BWR for approval.
- Install the provided tablet brackets following the instructions below.
- The final photos and the job card must be submitted before leaving the site.
Job Submit | Rapid Response ICT Field Services | BWR
|

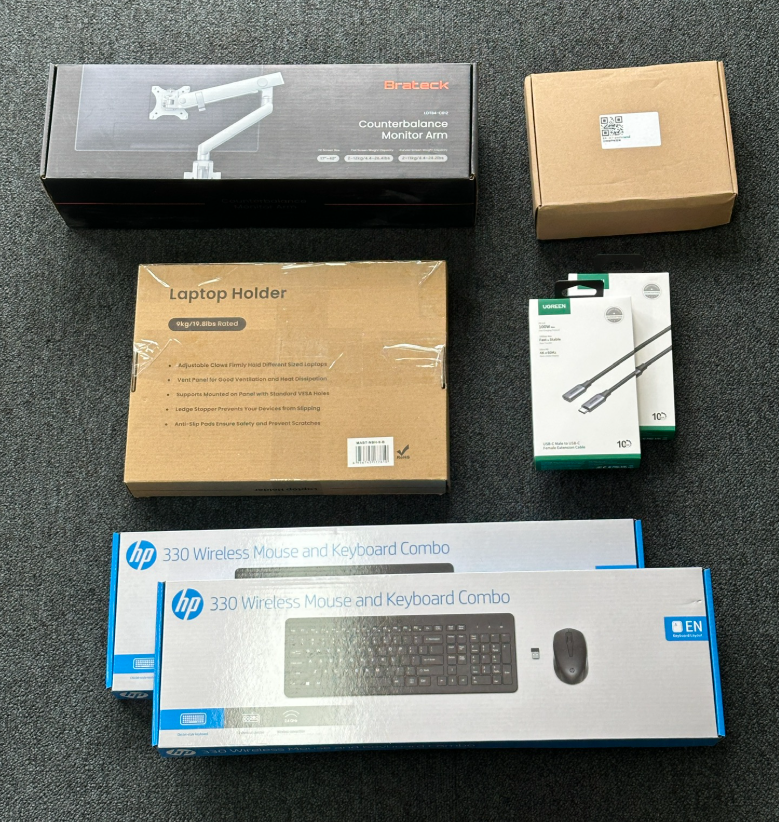

Hardware List:
Required Tools:
|
Monitor Arm Installation
|
If opening is between 50mm – 70mm, use grommet hardware that comes with monitor arm.
|
|
|
If opening is over 70mm, use clamp hardware that comes with monitor arm.
|
Grommet clamp installation
|

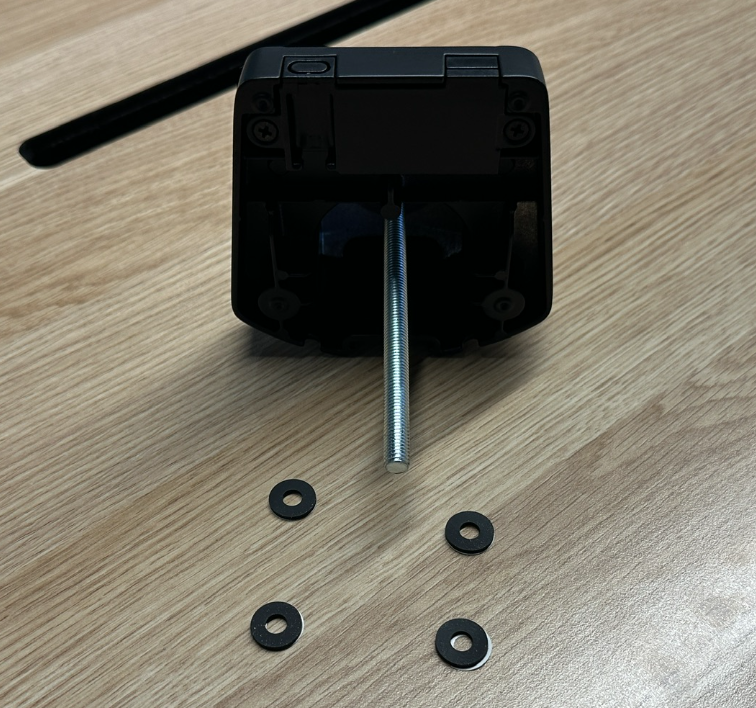

Insert into opening. Careful to not crush any cables Pull the base forward toward you and lift to tension the grommet clamp into place. Make sure the grommet clamp is going across. Secure the base to table. If access to underside is restricted, use a screwdriver to push toggle into position before tightening. Example with 50mm hole shown. For thick tabletops, insert the plate first and hold it in place using long-nose pliers while attaching the bolt. Or use a small amount of double-sided tape to temporarily secure it to the underside of the tabletop before connecting the bolt.
|
|
|
Bottom view
|
|
|
Base is secured Install the arm according to installation guide that comes with the stand
|
|
|
Continue to VESA Tablet holder installation
|
Clamp installation
|
Check that existing dock cable is not damaged. If it is, pick a different location. Insert clamp into opening. Careful to not crush any cables
Pull base forward towards you and secure the base to table.
Install the arm according to installation guide that comes with the stand
|
|
|
Continue to VESA Tablet holder installation
|
VESA Tablet holder installation
|
Detach VESA plate from mount.
|
|
|
Install VESA plate to tablet holder and secure to monitor arm.

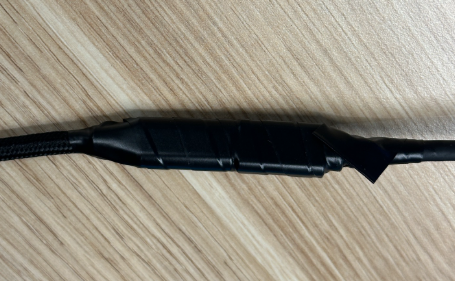

Attach USB-C extension cable to extend dock cable and secure the connectors with black electrical tape
|
|
|

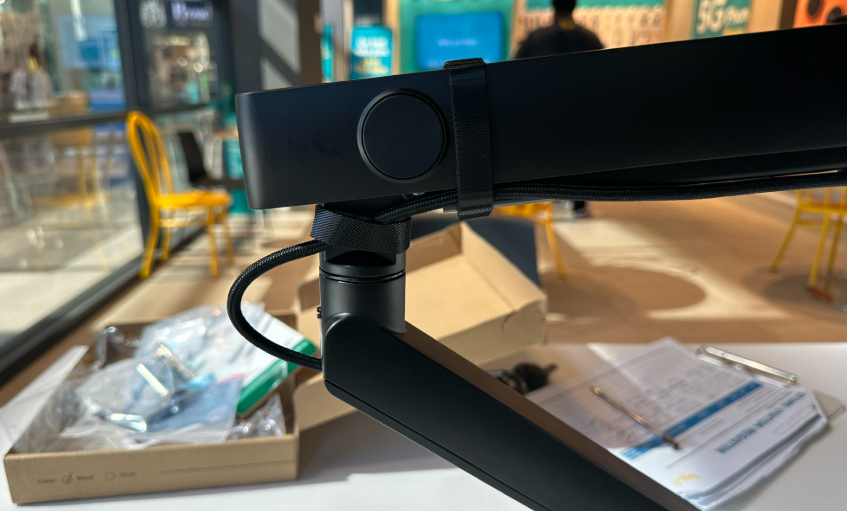

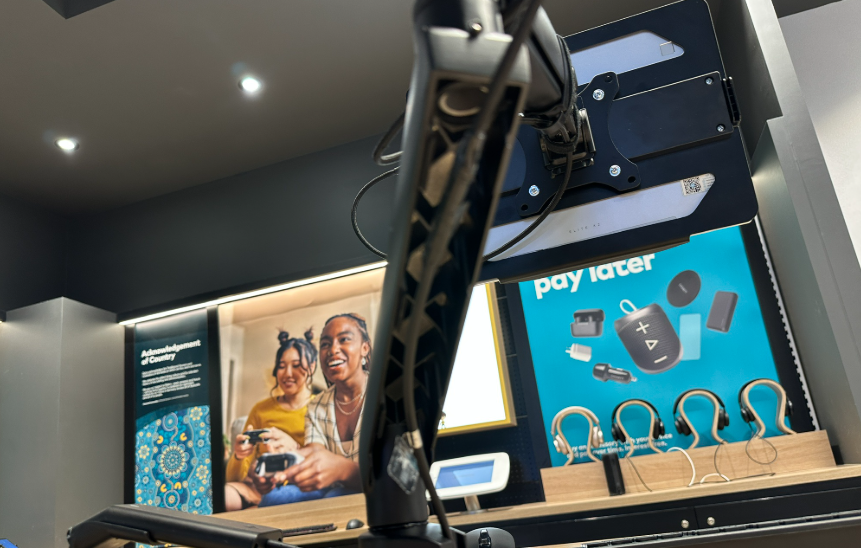

Hide the extension joint inside the cable channel of the lower arm. Use Hook and loop straps to secure cable to upper arm. 1x at elbow, 1x at the neck Leave some slack at the elbow to allow flexibility. |
|
|

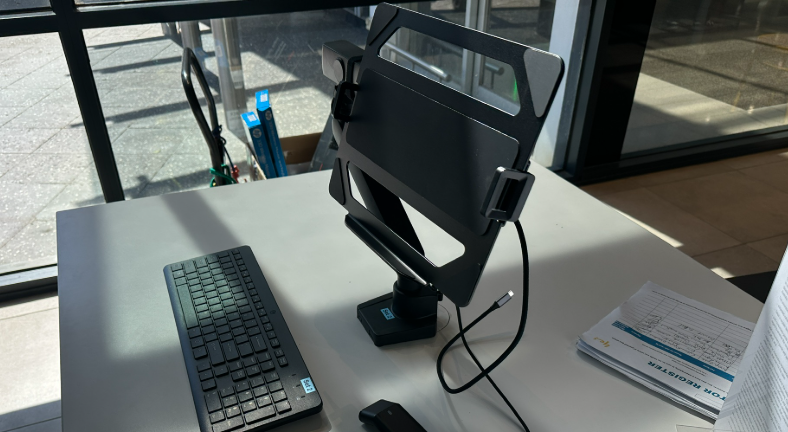

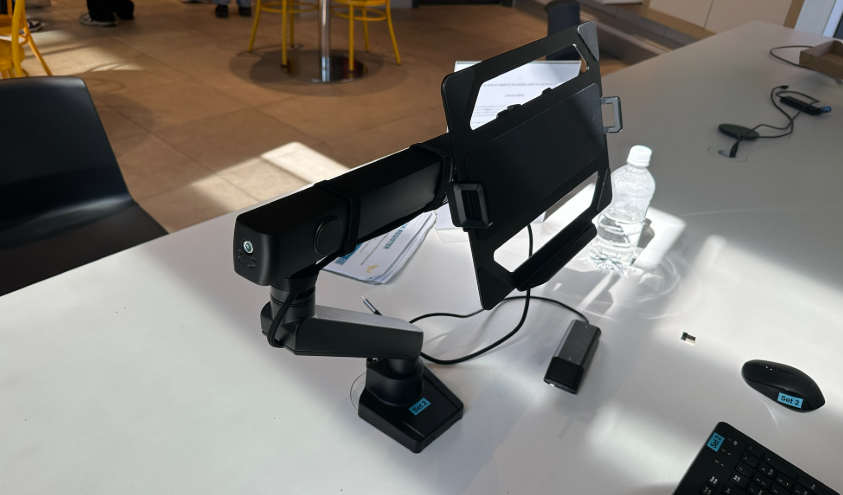

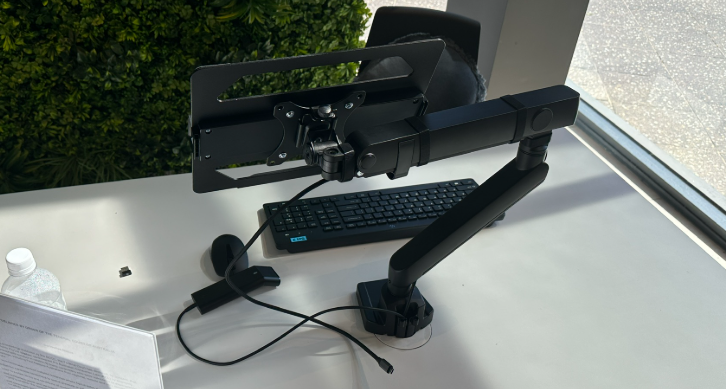

Cable tidy completed Set up so that elbow is not pointed towards customer. Unpack keyboard and mouse. Attach USB cable to dock.
|
|
|

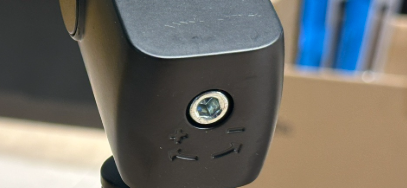

Place tablet into the bracket, and lift stand up and down, check that movement is not too loose or hard. If the tension is not appropriate, turn bolt in the back elbow to adjust.
|
|
| Connect extended dock cable to tablet. Test that tablet is charging, keyboard and mouse works, and ethernet icon appears. |
